Iscar

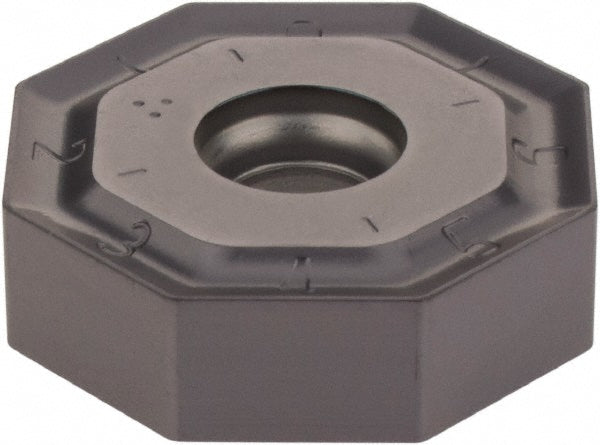

ONHU 080608-TN-MM Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5604696
MFR# 5604696ISO/ANSI# ONHU 080608-TN-MMCat# ONHU 080608-TN-MM IC908Series 16MILL
$36.23List $46.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeOctagon
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5604696 is a ONHU 080608-TN-MM solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeONHU 080608-TN-MM IC908
Chip breakerMM
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityF45NM; F45WG
Cutting edge effective length0.2170
Cutting edge styleT-Land
Included angle degree135
Inscribed circle0.7953
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size08
Insert size code080608
Insert styleONHU
Iso codeONHU 080608-TN-MM
Length0.7953
Length range0.7000 to 0.9000
Manufacturers catalog numberONHU 080608-TN-MM IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.2170
Multi use toolYes
Number of cutting edges16
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Rake angle24
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2360
Thickness range0.2350 to 0.2500
Width0.7953
