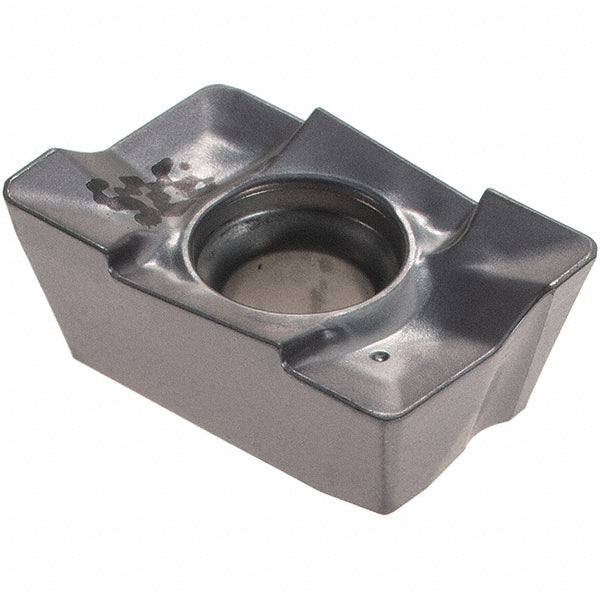

ADMT 1505PDR-HS Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5604699

Iscar

ADMT 1505PDR-HS Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5604699

MFR# 5604699ISO/ANSI# ADMT 1505PDR-HSCat# ADMT 1505PDR-HS IC928Series HELISHRED

$25.92List $33.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC928
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5604699 is a ADMT 1505PDR-HS solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeADMT 1505PDR-HS IC928
Chip breakerHS
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityADK
Cutting edge effective length0.5510
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.3780
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code1505
Insert styleADMT
Iso codeADMT 1505PDR-HS
Length0.6240
Length range0.6000 to 0.6500
Manufacturers catalog numberADMT 1505PDR-HS IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.4720
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2330
Thickness range0.2200 to 0.2350
Width0.3780
