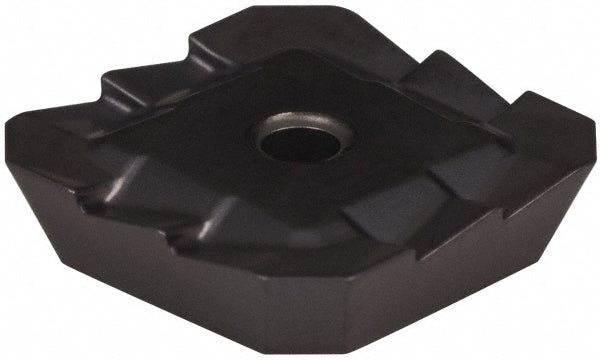

SEKR 1203AFTR-HS Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5604710

Iscar

SEKR 1203AFTR-HS Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5604710

MFR# 5604710ISO/ANSI# SEKR 1203AFTR-HSCat# SEKR 42AFTR-HS IC928Series ISCARMILL

$18.25List $23.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeIC928
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5604710 is a SEKR 1203AFTR-HS solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeSEKR 42AFTR-HS IC928
Chip breakerHS
Coating finishTiAlN
Coating processPVD
Corner radius0.0000
Cutter series compatibilityF45E
Cutting edge effective length0.5000
Cutting edge styleT-Land
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code42
Insert styleSEKR
Iso codeSEKR 1203AFTR-HS
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSEKR 42AFTR-HS IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC1; C2; C5; C6
Maximum depth of cut0.2560
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle20
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in1/2
