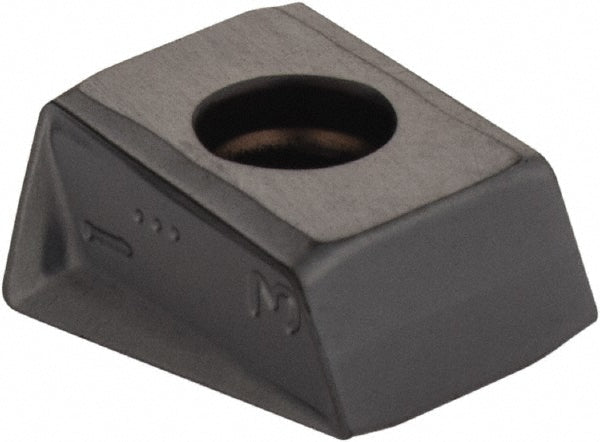

T490 LNMX 0804PN-R Solid Carbide Insert, Grade IC328, TiCN - Iscar 5604728

Iscar

T490 LNMX 0804PN-R Solid Carbide Insert, Grade IC328, TiCN - Iscar 5604728

MFR# 5604728ISO/ANSI# T490 LNMX 0804PN-RCat# T490 LNMX 0804PN-R IC328Series HELITANG

$23.27List $29.80 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeIC328
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5604728 is a T490 LNMX 0804PN-R solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeT490 LNMX 0804PN-R IC328
Chip breakerR
Coating finishTiCN
Coating processPVD
Corner radius0.0000
Cutter series compatibilityT490 LNK08
Cutting edge effective length0.3150
Cutting edge styleHelical
Included angle degree90
Inscribed circle0.1670
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size08
Insert size code0804
Insert styleLNMX
Iso codeT490 LNMX 0804PN-R
Length0.3150
Length range0.0000 to 0.3200
Manufacturers catalog numberT490 LNMX 0804PN-R IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC2; C3; C5; C6
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness (mm)4.24
Width0.1670
