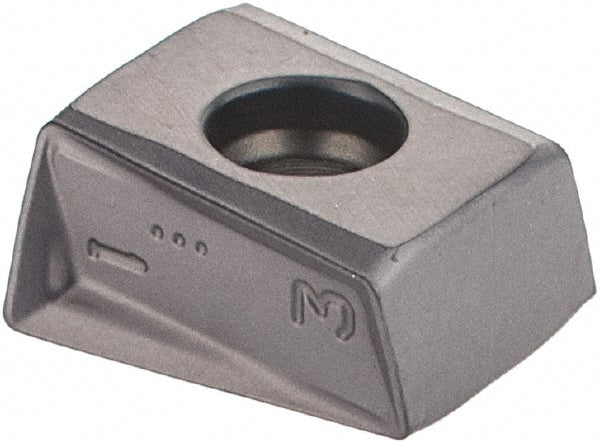

T490 LNMX 0804PN-R Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5604729

Iscar

T490 LNMX 0804PN-R Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5604729

MFR# 5604729ISO/ANSI# T490 LNMX 0804PN-RCat# T490 LNMX 0804PN-R IC928Series HELITANG

$23.27List $29.80 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeIC928
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5604729 is a T490 LNMX 0804PN-R solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeT490 LNMX 0804PN-R IC928
Chip breakerR
Coating finishTiAlN
Coating processPVD
Corner radius0.0000
Cutter series compatibilityT490 LNK08
Cutting edge effective length0.3150
Cutting edge styleHelical
Included angle degree90
Inscribed circle0.1670
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size08
Insert size code490
Insert styleLNMX
Iso codeT490 LNMX 0804PN-R
Length0.3150
Length range0.0000 to 0.3200
Manufacturers catalog numberT490 LNMX 0804PN-R IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC1; C2; C5; C6
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Width0.1670
