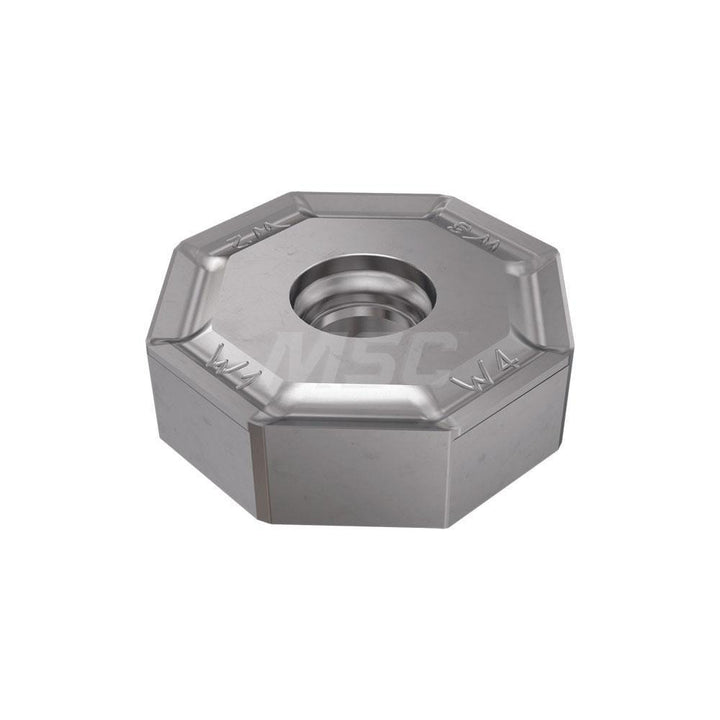

ONHU 0806AN-N-W Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5604739

Iscar

ONHU 0806AN-N-W Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5604739

MFR# 5604739ISO/ANSI# ONHU 0806AN-N-WCat# ONHU 0806AN-N-W IC910Series 16MILL

$38.26List $49.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeOctagon
GradeIC910
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5604739 is a ONHU 0806AN-N-W solid carbide indexable insert, grade IC910, AlTiN coated. Suited for steel, cast iron.

Specifications

Ansi codeONHU 0806AN-N-W IC910
Chip breakerW
Coating finishAlTiN
Coating processPVD
Corner radius0.0197
Cutter series compatibilityF45NM; F45WG
Cutting edge effective length0.1380
Cutting edge styleWiper
Included angle degree135
Inscribed circle0.7992
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size08
Insert size code0806
Insert styleONHU
Iso codeONHU 0806AN-N-W
Length0.7992
Length range0.7000 to 0.9000
Manufacturers catalog numberONHU 0806AN-N-W IC910
Manufacturer gradeIC910
Material applicationSteel; Cast Iron
Material gradeC2; C3; C6
Maximum depth of cut0.1380
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2360
Thickness range0.2350 to 0.2500
Width0.7992
