Iscar

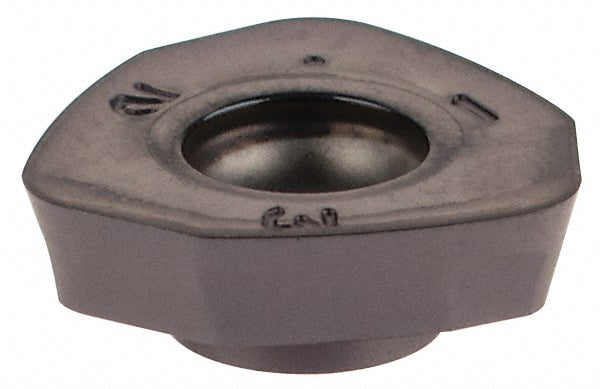

FF WOCT 060212T Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5604811
MFR# 5604811ISO/ANSI# FF WOCT 060212TCat# FF WOCT 060212T IC928Series FEEDMILL
$22.88List $28.80
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeIC928
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5604811 is a FF WOCT 060212T solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeFF WOCT 060212T IC928
Chip breakerT
Coating finishTiAlN
Coating processPVD
Corner radius0.0787
Cutter series compatibilityFF FW; FF EW
Cutting edge effective length0.2756
Cutting edge styleHigh Feed Rate
Included angle degree80
Inscribed circle0.3882
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size06
Insert size code060212
Insert styleWOCT
Iso codeFF WOCT 060212T
Length0.3882
Length range0.3200 to 0.4000
Manufacturers catalog numberFF WOCT 060212T IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC1; C2; C5; C6
Maximum depth of cut0.0470
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1060
Thickness range0.1000 to 0.1250
Width0.3882
