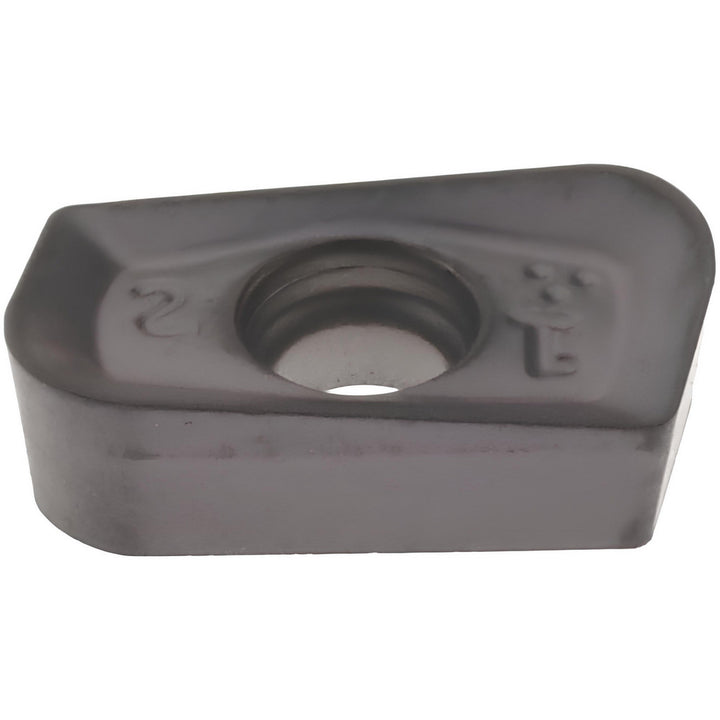

HP ANKT 070216PNTR Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5604816

MFR# 5604816ISO/ANSI# HP ANKT 070216PNTRCat# HP ANKT 070216PNTR IC908Series HELIPLUS

$17.10List $21.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC908
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5604816 is a HP ANKT 070216PNTR solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeHP ANKT 070216PNTR IC908
Chip breakerPNTR
Coating finishTiAlN
Coating processPVD
Corner radius0.0630
Cutter series compatibilityHP ANK-07; HP.90-07
Cutting edge effective length0.3030
Cutting edge styleT-Land
Included angle degree85
Inscribed circle0.1770
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size07
Insert size code070216
Insert styleANKT
Iso codeHP ANKT 070216PNTR
Length0.3430
Length range0.3200 to 0.4000
Manufacturers catalog numberHP ANKT 070216PNTR IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.3030
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Rake angle32
Relief angle0
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1020
Thickness range0.1000 to 0.1250
Width0.1770
