Iscar

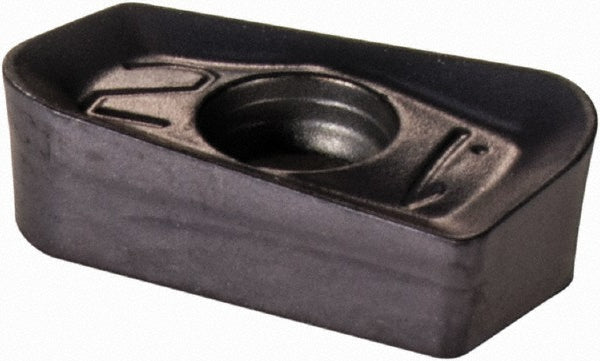

HP ANKT 070216PNTR Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5604817
MFR# 5604817ISO/ANSI# HP ANKT 070216PNTRCat# HP ANKT 070216PNTR IC928Series HELIPLUS
$17.10List $21.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC928
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5604817 is a HP ANKT 070216PNTR solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeHP ANKT 070216PNTR IC928
Chip breakerPNTR
Coating finishTiAlN
Coating processPVD
Corner radius0.0630
Cutter series compatibilityHP ANK-07; HP.90-07
Cutting edge effective length0.3030
Cutting edge styleT-Land
Included angle degree85
Inscribed circle0.1770
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size07
Insert size code070216
Insert styleANKT
Iso codeHP ANKT 070216PNTR
Length0.3430
Length range0.3200 to 0.4000
Manufacturers catalog numberHP ANKT 070216PNTR IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.3030
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle32
Relief angle0
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1020
Thickness range0.1000 to 0.1250
Width0.1770
