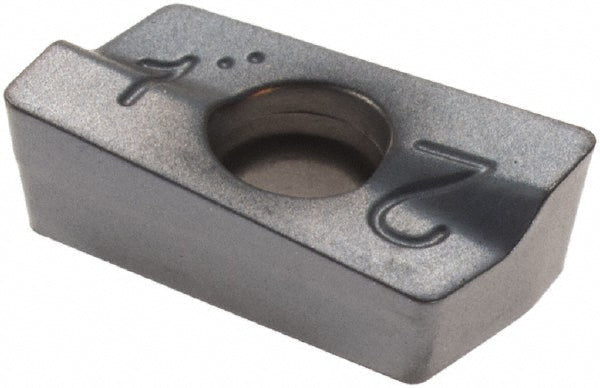

HP ANKW 070204PNTR Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5604818
MFR# 5604818ISO/ANSI# HP ANKW 070204PNTRCat# HP ANKW 070204PNTR IC910Series HELIPLUS
$17.40List $21.90
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC910
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 5604818 is a HP ANKW 070204PNTR solid carbide indexable insert, grade IC910, AlTiN coated. Suited for steel, cast iron.
Specifications
Ansi codeHP ANKW 070204PNTR IC910
Chip breakerPNTR
Coating finishAlTiN
Coating processPVD
Corner radius in1/64
Cutter series compatibilityHP ANK-07; HP.90-07
Cutting edge effective length0.3030
Cutting edge styleT-Land
Included angle degree85
Inscribed circle0.1770
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size07
Insert size code070204
Insert styleANKW
Iso codeHP ANKW 070204PNTR
Length0.3430
Length range0.3200 to 0.4000
Manufacturers catalog numberHP ANKW 070204PNTR IC910
Manufacturer gradeIC910
Material applicationSteel; Cast Iron
Maximum depth of cut0.3030
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakeNegative
Relief angle0
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1020
Thickness range0.1000 to 0.1250
Width0.1770
