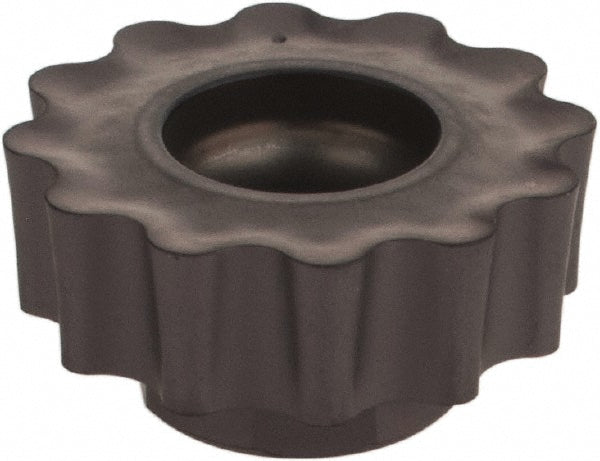

RCMT 1607-FW-F20 Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5604856

MFR# 5604856ISO/ANSI# RCMT 1607-FW-F20Cat# RCMT 1607-FW-F20 IC928Series MILLSHRED

$23.97List $30.70 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
GradeIC928
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5604856 is a RCMT 1607-FW-F20 solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeRCMT 1607-FW-F20 IC928
Chip breakerFW
Coating finishTiAlN
Coating processPVD
Corner radius0.3150
Cutter series compatibilityFRW
Cutting edge effective length0.6299
Cutting edge styleSegmented
Included angle degree360
Inscribed circle0.6299
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size16
Insert size code1607
Insert styleRCMT
Iso codeRCMT 1607-FW-F20
Length0.6299
Length range0.6000 to 0.6500
Manufacturers catalog numberRCMT 1607-FW-F20 IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle7
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1970
Thickness range0.1850 to 0.2000
Width0.6299
