Iscar

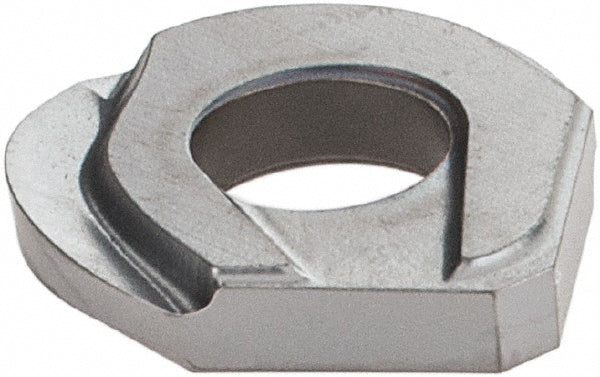

HBR D.50-QF Solid Carbide Insert, Grade IC328, TiCN - Iscar 5604863
MFR# 5604863ISO/ANSI# HBR D.50-QFCat# HBR D.50-QF IC328Series BALLPLUS
$42.60List $53.60
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeBall Nose
GradeIC328
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5604863 is a HBR D.50-QF solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeHBR D.50-QF IC328
Chip breakerQF
Coating finishTiCN
Coating processPVD
Corner radius in1/4
Cutter series compatibilityHCM
Cutting edge effective length0.3300
Cutting edge styleHoned
Included angle degree360
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size0.50
Insert size code0.50
Insert styleHBR
Iso codeHBR D.50-QF
Length0.3300
Length range0.3200 to 0.4000
Manufacturers catalog numberHBR D.50-QF IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.3300
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1020
Thickness range0.1000 to 0.1250
Width in1/2
