Iscar

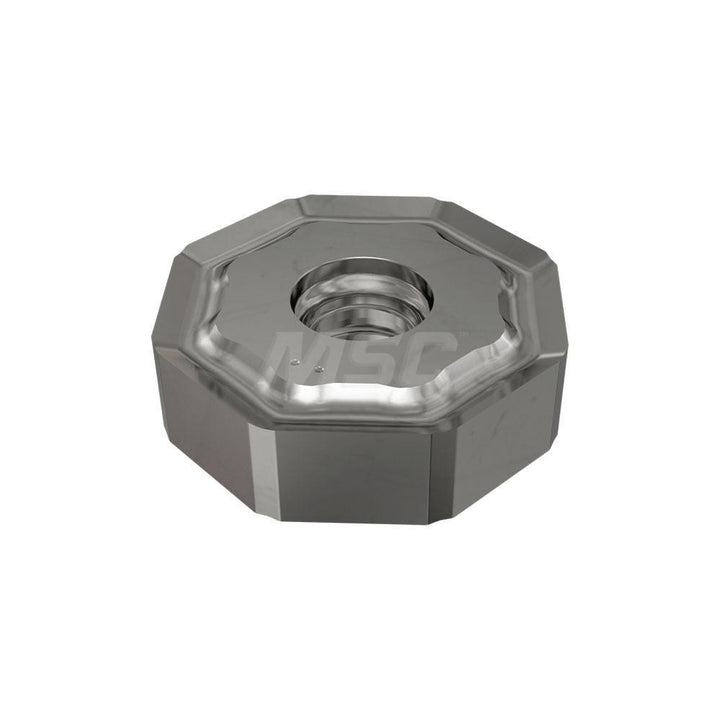

ONHU 080600-N-PL Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5604873
MFR# 5604873ISO/ANSI# ONHU 080600-N-PLCat# ONHU 080600-N-PL IC910Series 16MILL
$36.87List $46.40
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeOctagon
GradeIC910
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 5604873 is a ONHU 080600-N-PL solid carbide indexable insert, grade IC910, AlTiN coated. Suited for steel, cast iron.
Specifications
Ansi codeONHU 080600-N-PL IC910
Chip breakerPL
Coating finishAlTiN
Coating processPVD
Corner radius in1/64
Cutter series compatibilityF45NM; F45WG
Cutting edge effective length0.2170
Cutting edge styleT-Land
Included angle degree135
Inscribed circle0.7953
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size08
Insert size code080600
Insert styleONHU
Iso codeONHU 080600-N-PL
Length0.7953
Length range0.7000 to 0.9000
Manufacturers catalog numberONHU 080600-N-PL IC910
Manufacturer gradeIC910
Material applicationSteel; Cast Iron
Maximum depth of cut0.2170
Multi use toolYes
Number of cutting edges16
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle26
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2360
Thickness range0.2350 to 0.2500
Width0.7953
