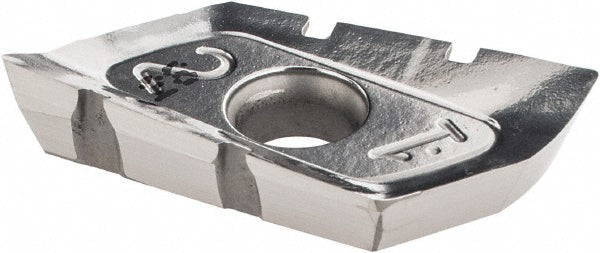

HM90 APCR 220605-CS Solid Carbide Insert, Grade IC28 - Iscar 5604877

Iscar

HM90 APCR 220605-CS Solid Carbide Insert, Grade IC28 - Iscar 5604877

MFR# 5604877ISO/ANSI# HM90 APCR 220605-CSCat# HM90 APCR 220605-CS IC28Series HELIALU

$66.44List $85.10 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC28
MaterialSolid Carbide

Description

The Iscar 5604877 is a HM90 APCR 220605-CS solid carbide indexable insert, grade IC28. Suited for non-ferrous metal.

Specifications

Ansi codeHM90 APCR 220605-CS IC28
Chip breakerCS
Coating processUncoated
Corner radius0.0197
Cutter series compatibilityHM90-22
Cutting edge effective length0.8660
Cutting edge styleSegmented
Included angle degree85
Inscribed circle0.5750
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size22
Insert size code220605
Insert styleAPCR
Iso codeHM90 APCR 220605-CS
Length1.2170
Length range1.0000+
Manufacturers catalog numberHM90 APCR 220605-CS IC28
Manufacturer gradeIC28
Material applicationNon-Ferrous Metal
Maximum depth of cut0.8660
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2720
Thickness range0.2500 to 0.3500
Width0.5750
