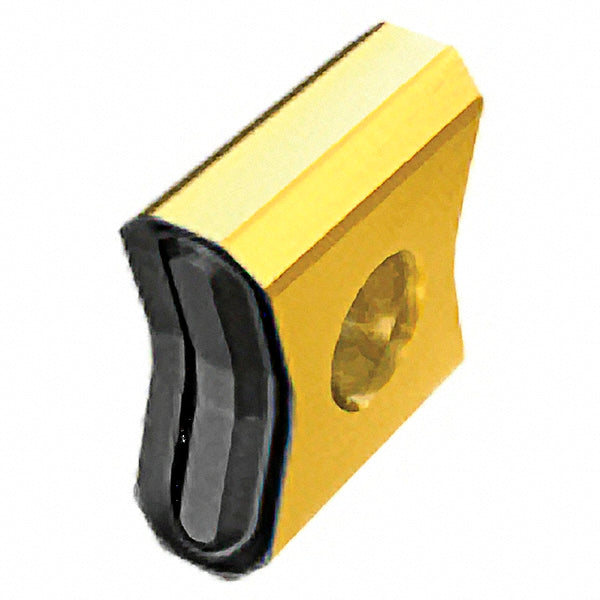

LNKX 1506 1.5X45PN-N Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5605010

Iscar

LNKX 1506 1.5X45PN-N Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5605010

MFR# 5605010ISO/ANSI# LNKX 1506 1.5X45PN-NCat# LNKX 1506 1.5X45PN-N IC910Series TANGMILL

$30.84List $39.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeIC910
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5605010 is a LNKX 1506 1.5X45PN-N solid carbide indexable insert, grade IC910, AlTiN coated. Suited for steel, cast iron.

Specifications

Ansi codeLNKX 1506 1.5X45PN-N IC910
Chip breakerN
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutter series compatibilitySSB-LN15; F90LN15
Cutting edge effective length0.5906
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.2360
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size15
Insert size code1506
Insert styleLNKX
Iso codeLNKX 1506 1.5X45PN-N
Length0.5906
Length range0.5000 to 0.6000
Manufacturers catalog numberLNKX 1506 1.5X45PN-N IC910
Manufacturer gradeIC910
Material applicationSteel; Cast Iron
Maximum depth of cut0.2760
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle27
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.5460
Thickness range0.5000+
Width0.2360
