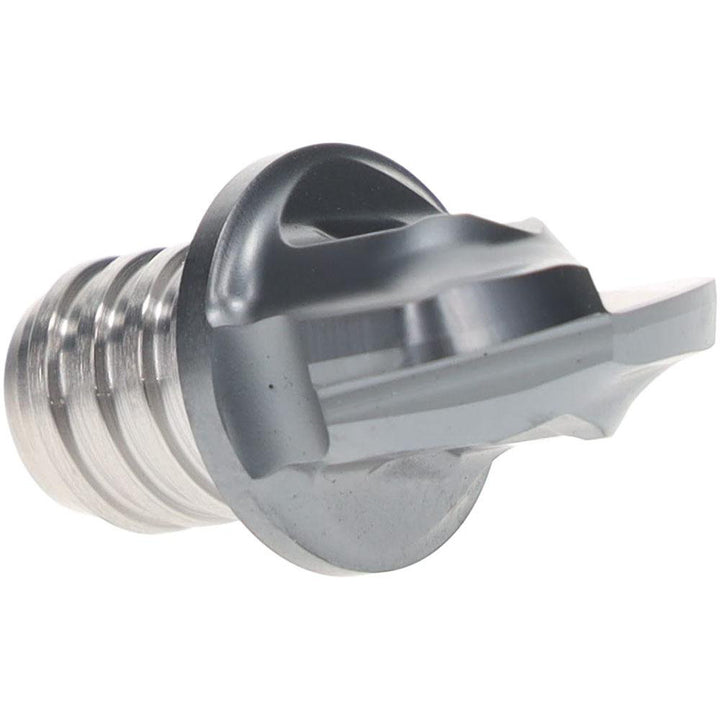

Carbide Insert, Grade IC908, TiAlN - Iscar 5605013

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5605013

MFR# 5605013Series MM FF

$141.41List $181.10 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN

Description

The Iscar 5605013 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle48degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius2.0000
Cutting diameter0.6300
Cutting width0.6300in
Extension from holder in0.5315
Functional length0.5310
Included angle degree85
Insert handRight Hand
Insert size160R2.0
Lead angle97
Length of cut0.0430in
Manufacturers catalog number5605013
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.0430
Milling tip full descriptionMM FF160R2.0-2T10
Milling tip styleMM FF
Milling tip typeHigh Feed
Number of flutes2
Overall length in17/32in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
