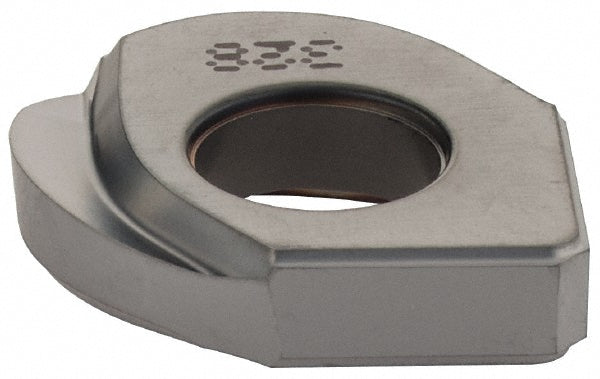

HBR D.75-QF Solid Carbide Insert, Grade IC328, TiCN - Iscar 5605023

Iscar

HBR D.75-QF Solid Carbide Insert, Grade IC328, TiCN - Iscar 5605023

MFR# 5605023ISO/ANSI# HBR D.75-QFCat# HBR D.75-QF IC328Series BALLPLUS

$53.64List $68.70 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeBall Nose
GradeIC328
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5605023 is a HBR D.75-QF solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeHBR D.75-QF IC328
Chip breakerQF
Coating finishTiCN
Coating processPVD
Corner radius in3/8
Cutter series compatibilityHCM
Cutting edge effective length0.5280
Cutting edge styleHoned
Included angle degree360
Inscribed circle in3/4
Inscribed circle range0.7000 to 1.0000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size0.75
Insert size code0.75
Insert styleHBR
Iso codeHBR D.75-QF
Length0.5280
Length range0.5000 to 0.6000
Manufacturers catalog numberHBR D.75-QF IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.5280
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1830
Thickness range0.1750 to 0.1850
Width in3/4
