Iscar

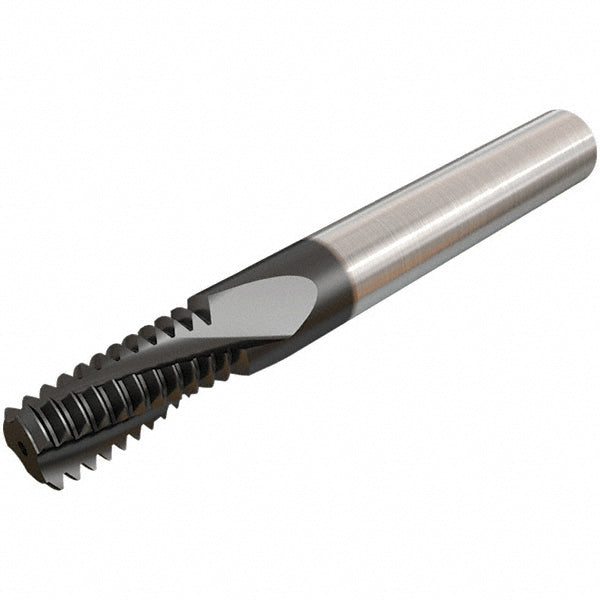

Helical Flute Thread Mills - Iscar 5605049
MFR# 5605049
$300.18List $385.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiAlN
Description
The Iscar 5605049 helical flute thread mills.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting diameter0.3543
Flute directionRight Hand
Length of cut1.1378
MaterialSolid Carbide
Minimum nominal diameter in0.4724
Number of flutes3
Overall length (mm)73.00
Pitch (mm)1.75
Shank diameter (mm)10.00
Thread size (mm)M12 x 1.75
Thread standardISO
Thread typeInternal
