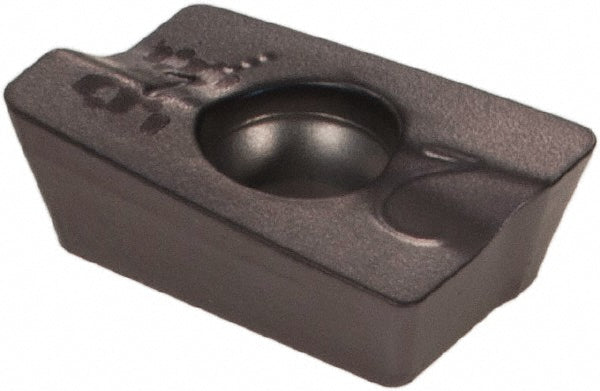

HM90 APKW 1003PDR Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5605154

Iscar

HM90 APKW 1003PDR Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5605154

MFR# 5605154ISO/ANSI# HM90 APKW 1003PDRCat# HM90 APKW 1003PDR IC908Series HELI2000

$18.66List $23.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC17/64
ShapeParallelogram
GradeIC908
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5605154 is a HM90 APKW 1003PDR solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeHM90 APKW 1003PDR IC908
Chip breakerPDR
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityHM90-10
Cutting edge effective length0.4040
Cutting edge styleHoned
Included angle degree85
Inscribed circle in17/64
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code1003
Insert styleAPKW
Iso codeHM90 APKW 1003PDR
Length0.4520
Length range0.4500 to 0.5000
Manufacturers catalog numberHM90 APKW 1003PDR IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.3860
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1380
Thickness range0.1250 to 0.1500
Width in17/64
