Iscar

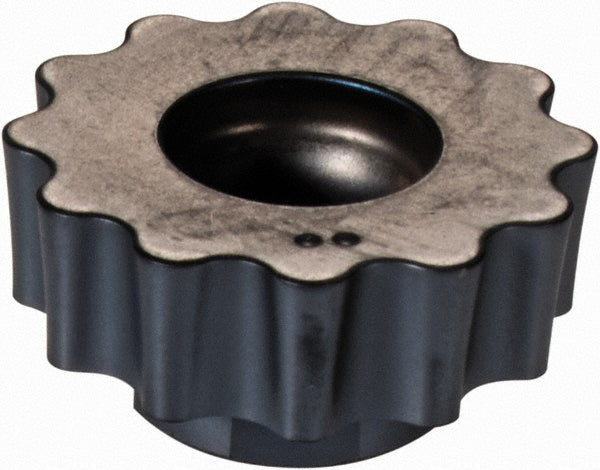

RCMW 1607-T-FW Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5605157
MFR# 5605157ISO/ANSI# RCMW 1607-T-FWCat# RCMW 1607-T-FW IC910Series MILLSHRED
$24.39List $30.70
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeIC910
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 5605157 is a RCMW 1607-T-FW solid carbide indexable insert, grade IC910, AlTiN coated. Suited for steel, cast iron.
Specifications
Ansi codeRCMW 1607-T-FW IC910
Chip breakerFW
Coating finishAlTiN
Coating processPVD
Corner radius0.3150
Cutter series compatibilityFRW
Cutting edge effective length0.6299
Cutting edge styleSegmented
Included angle degree360
Inscribed circle0.6299
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size16
Insert size code1607
Insert styleRCMW
Iso codeRCMW 1607-T-FW
Length0.6299
Length range0.6000 to 0.6500
Manufacturers catalog numberRCMW 1607-T-FW IC910
Manufacturer gradeIC910
Material applicationSteel; Cast Iron
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakePositive
Relief angle7
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1970
Thickness range0.1850 to 0.2000
Width0.6299
