Carbide Insert, Grade IC908, TiAlN - Iscar 5605164

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5605164

MFR# 5605164Series MM HDF

$88.00List $112.70 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN

Description

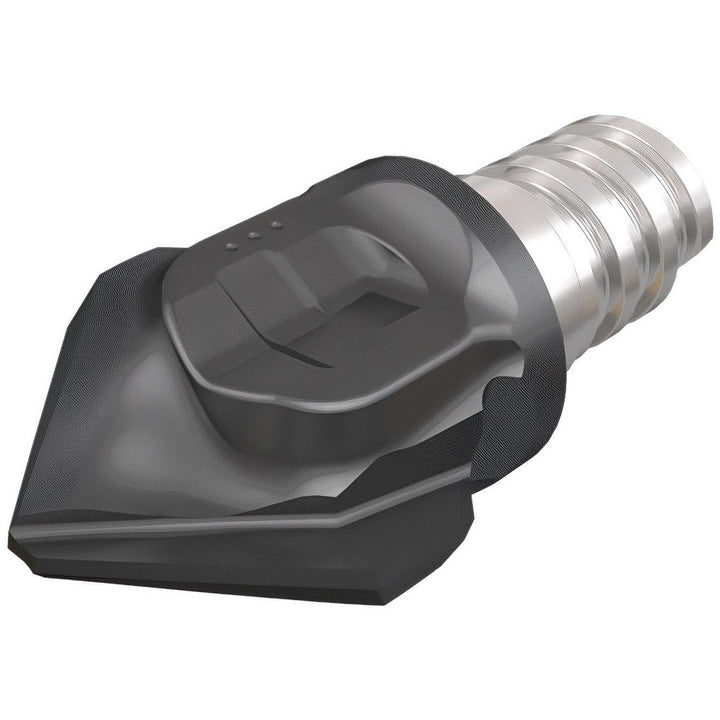

The Iscar 5605164 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting width0.0473in
Extension from holder in0.4409
Functional length0.4413
Included angle degree90
Insert handRight Hand
Insert size120-090
Lead angle90
Manufacturers catalog number5605164
Manufacturer gradeIC908
Material gradeSub Micrograin
Milling tip full descriptionMM HDF120-090-2T06
Milling tip styleMM HDF
Milling tip typeChamfer
Number of flutes2
Overall length0.4413in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
