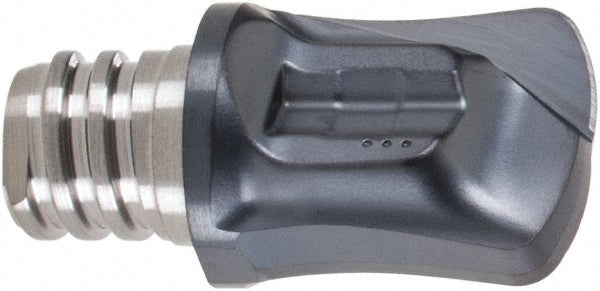

Carbide Insert, Grade IC908, TiAlN - Iscar 5605166

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5605166

MFR# 5605166Series MM FF

$71.68List $91.80 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN

Description

The Iscar 5605166 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle48degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius1.5000
Cutting diameter0.3940
Cutting width0.3940in
Extension from holder in0.4920
Functional length0.4920
Included angle degree85
Insert handRight Hand
Insert size100R1.5-L12
Lead angle97
Length of cut0.0240in
Manufacturers catalog number5605166
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.0240
Milling tip full descriptionMM FF100R1.5-L12-2T06
Milling tip styleMM FF
Milling tip typeHigh Feed
Number of flutes2
Overall length0.4920in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
