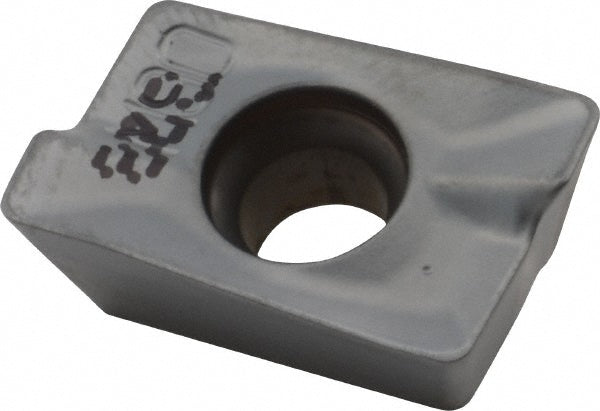

ADKT 1505 PDR-HM Solid Carbide Insert, Grade IC328, TiCN - Iscar 5605172

Iscar

ADKT 1505 PDR-HM Solid Carbide Insert, Grade IC328, TiCN - Iscar 5605172

MFR# 5605172ISO/ANSI# ADKT 1505 PDR-HMCat# ADKT 1505PDR HM90 IC328Series HELIMILL

$20.61List $26.40 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeParallelogram
GradeIC328
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5605172 is a ADKT 1505 PDR-HM solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeADKT 1505PDR HM90 IC328
Chip breakerHM
Coating finishTiCN
Coating processPVD
Corner radius0.0000
Cutter series compatibilityHM90-15
Cutting edge effective length0.5410
Cutting edge styleHoned
Included angle degree85
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code1505
Insert styleADKT
Iso codeADKT 1505 PDR-HM
Length0.6160
Length range0.6000 to 0.6500
Manufacturers catalog numberADKT 1505PDR HM90 IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.4720
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2300
Thickness range0.2200 to 0.2350
Width in3/8
