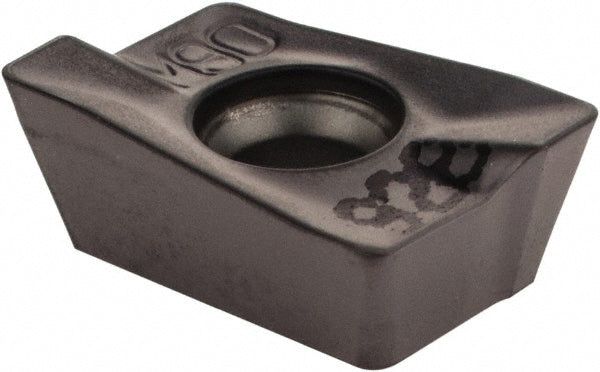

ADKT 1505PDR HM90 Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5605173

Iscar

ADKT 1505PDR HM90 Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5605173

MFR# 5605173ISO/ANSI# ADKT 1505PDR HM90Cat# ADKT 1505PDR HM90 IC928Series HELIMILL

$20.61List $26.40 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeParallelogram
GradeIC928
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5605173 is a ADKT 1505PDR HM90 solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeADKT 1505PDR HM90 IC928
Chip breakerHM
Coating finishTiAlN
Coating processPVD
Corner radius0.0000
Cutter series compatibilityHM90-15
Cutting edge effective length0.5410
Cutting edge styleHoned
Included angle degree85
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code1505
Insert styleADKT
Iso codeADKT 1505PDR HM90
Length0.6160
Length range0.6000 to 0.6500
Manufacturers catalog numberADKT 1505PDR HM90 IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC1; C2; C5; C6
Maximum depth of cut0.4720
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2300
Thickness range0.2200 to 0.2350
Width0.3770
