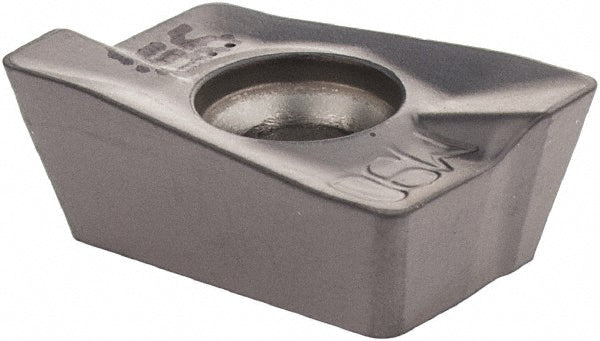

ADKT 1505PDR HM90 Solid Carbide Insert, Grade IC950, TiAlN - Iscar 5605176

Iscar

ADKT 1505PDR HM90 Solid Carbide Insert, Grade IC950, TiAlN - Iscar 5605176

MFR# 5605176ISO/ANSI# ADKT 1505PDR HM90Cat# ADKT 1505PDR HM90 IC950Series HELIMILL

$20.61List $26.40 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeParallelogram
GradeIC950
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5605176 is a ADKT 1505PDR HM90 solid carbide indexable insert, grade IC950, TiAlN coated. Suited for steel, cast iron.

Specifications

Ansi codeADKT 1505PDR HM90 IC950
Chip breakerHM
Coating finishTiAlN
Coating processPVD
Corner radius0.0000
Cutter series compatibilityHM90-15
Cutting edge effective length0.5410
Cutting edge styleHoned
Included angle degree85
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code1505
Insert styleADKT
Iso codeADKT 1505PDR HM90
Length0.6160
Length range0.6000 to 0.6500
Manufacturers catalog numberADKT 1505PDR HM90 IC950
Manufacturer gradeIC950
Material applicationSteel; Cast Iron
Material gradeC1; C2; C3; C5; C6
Maximum depth of cut0.4720
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2300
Thickness range0.2200 to 0.2350
Width in3/8
