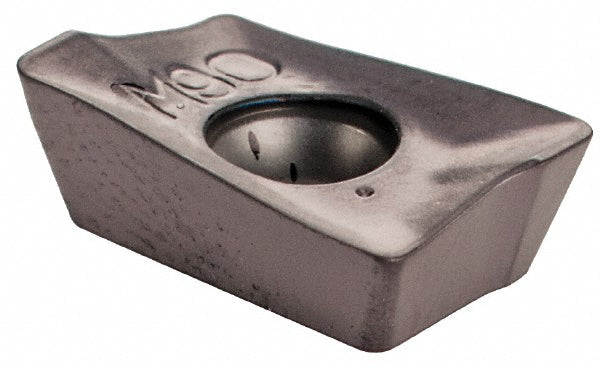

APKT 1003PDR HM90 Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5605179

Iscar

APKT 1003PDR HM90 Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5605179

MFR# 5605179ISO/ANSI# APKT 1003PDR HM90Cat# APKT 1003PDR HM90 IC928Series HELIMILL

$17.18List $22.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC928
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5605179 is a APKT 1003PDR HM90 solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeAPKT 1003PDR HM90 IC928
Chip breakerHM
Coating finishTiAlN
Coating processPVD
Corner radius0.0000
Cutter series compatibilityHM90-10
Cutting edge effective length0.3960
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.2640
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code1003
Insert styleAPKT
Iso codeAPKT 1003PDR HM90
Length0.4310
Length range0.4000 to 0.4500
Manufacturers catalog numberAPKT 1003PDR HM90 IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC1; C2; C5; C6
Maximum depth of cut0.3860
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1390
Thickness range0.1250 to 0.1500
Width0.2640
