Iscar

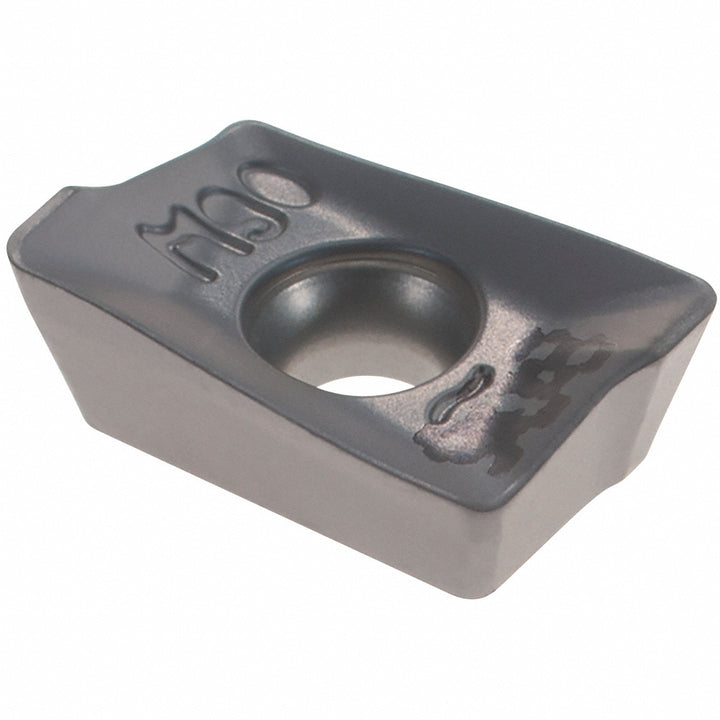

APKT 1003PDR-HM90 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5605183
MFR# 5605183ISO/ANSI# APKT 1003PDR-HM90Cat# APKT 1003PDR HM90 IC908Series HELIMILL
$17.18List $22.00
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5605183 is a APKT 1003PDR-HM90 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeAPKT 1003PDR HM90 IC908
Chip breakerHM
Coating finishTiAlN
Coating processPVD
Corner radius0.0000
Cutter series compatibilityHM90-10
Cutting edge effective length0.3960
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.2640
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code1003
Insert styleAPKT
Iso codeAPKT 1003PDR-HM90
Length0.4310
Length range0.4000 to 0.4500
Manufacturers catalog numberAPKT 1003PDR HM90 IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.3860
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1390
Thickness range0.1250 to 0.1500
Width0.2640
