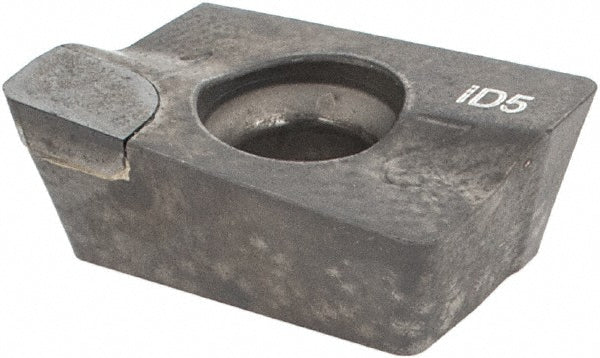

ADKW 150508 PDR PCD (Polycrystalline Diamond) Insert, Grade ID5 - Iscar 5605184

Iscar

ADKW 150508 PDR PCD (Polycrystalline Diamond) Insert, Grade ID5 - Iscar 5605184

MFR# 5605184ISO/ANSI# ADKW 150508 PDRCat# ADKW 150508 PDR ID5Series HELI2000

$159.79List $165.00 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeID5
MaterialPCD (Polycrystalline Diamond)

Description

The Iscar 5605184 is a ADKW 150508 PDR pcd (polycrystalline diamond) indexable insert, grade ID5. Suited for non-ferrous metal.

Specifications

Ansi codeADKW 150508 PDR ID5
Chip breakerPDR
Coating processUncoated
Corner radius in1/32
Cutter series compatibilityHM90-15
Cutting edge effective length0.0790
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.3780
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialPCD (Polycrystalline Diamond)
Insert shapeParallelogram
Insert size15
Insert size code150508
Insert styleADKW
Iso codeADKW 150508 PDR
Length0.6370
Length range0.6000 to 0.6500
Manufacturers catalog numberADKW 150508 PDR ID5
Manufacturer gradeID5
Material applicationNon-Ferrous Metal
Maximum depth of cut0.0790
Multi use toolYes
Number of cutting edges1
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2300
Thickness range0.2200 to 0.2350
Width0.3780
