Iscar

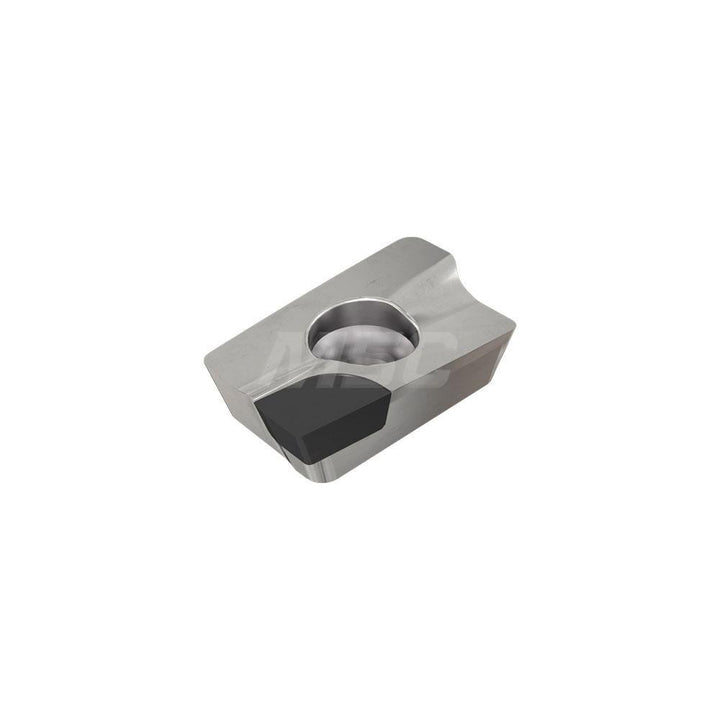

APKW 100304 PDR PCD (Polycrystalline Diamond) Insert, Grade ID8 - Iscar 5605187
MFR# 5605187ISO/ANSI# APKW 100304 PDRCat# APKW 100304 PDR ID8Series HELIMILL
$140.44List $142.50
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 2 — minimum order 2
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC17/64
ShapeParallelogram
GradeID8
MaterialPCD (Polycrystalline Diamond)
Description
The Iscar 5605187 is a APKW 100304 PDR pcd (polycrystalline diamond) indexable insert, grade ID8. Suited for non-ferrous metal.
Specifications
Ansi codeAPKW 100304 PDR ID8
Chip breakerPDR
Coating processUncoated
Corner radius in1/64
Cutter series compatibilityHM90-10
Cutting edge effective length0.0790
Cutting edge styleSharp
Included angle degree85
Inscribed circle in17/64
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialPCD (Polycrystalline Diamond)
Insert shapeParallelogram
Insert size10
Insert size code100304
Insert styleAPKW
Iso codeAPKW 100304 PDR
Length0.4410
Length range0.4000 to 0.4500
Manufacturers catalog numberAPKW 100304 PDR ID8
Manufacturer gradeID8
Material applicationNon-Ferrous Metal
Maximum depth of cut0.0790
Multi use toolYes
Number of cutting edges1
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1380
Thickness range0.1250 to 0.1500
Width in17/64
