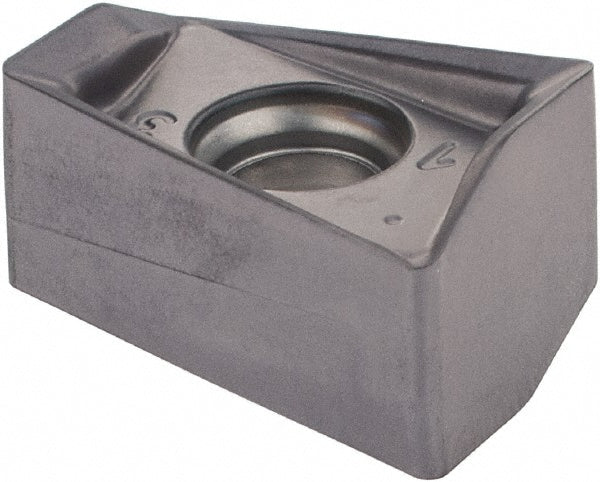

H490 ANKX 170608PNTR Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5605206
MFR# 5605206ISO/ANSI# H490 ANKX 170608PNTRCat# H490 ANKX 170608PNTR IC928Series HELIDO
$27.72List $35.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC928
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5605206 is a H490 ANKX 170608PNTR solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeH490 ANKX 170608PNTR IC928
Chip breakerPNTR
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityH490 ANK17
Cutting edge effective length0.6300
Cutting edge styleHelical
Included angle degree85
Inscribed circle0.4410
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size17
Insert size code170608
Insert styleANKX
Iso codeH490 ANKX 170608PNTR
Length0.6575
Length range0.6500 to 0.7000
Manufacturers catalog numberH490 ANKX 170608PNTR IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC1; C2; C5; C6
Maximum depth of cut0.6300
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.4090
Thickness range0.3500 to 0.5000
Width0.4410
