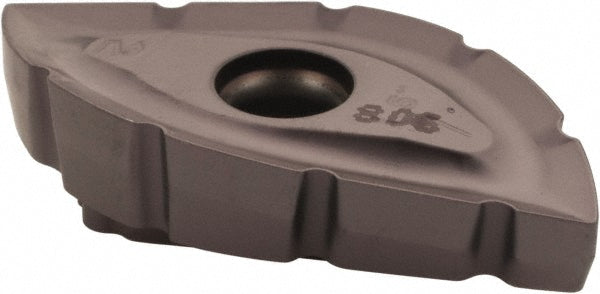

BCR D1.50-CS Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5605220

Iscar

BCR D1.50-CS Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5605220

MFR# 5605220ISO/ANSI# BCR D1.50-CSCat# BCR D1.50-CS IC908Series DROPMILL

$101.67List $130.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeBall Nose
GradeIC908
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5605220 is a BCR D1.50-CS solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeBCR D1.50-CS IC908
Chip breakerCS
Coating finishTiAlN
Coating processPVD
Corner radius in3/4
Cutter series compatibilityBCM
Cutting edge effective length1.4250
Cutting edge styleSegmented
Included angle degree90
Inscribed circle0.7590
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size1.50
Insert size code1.50
Insert styleBCR
Iso codeBCR D1.50-CS
Length1.4250
Length range1.0000+
Manufacturers catalog numberBCR D1.50-CS IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut1.4250
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2900
Thickness range0.2500 to 0.3500
Width0.7590
