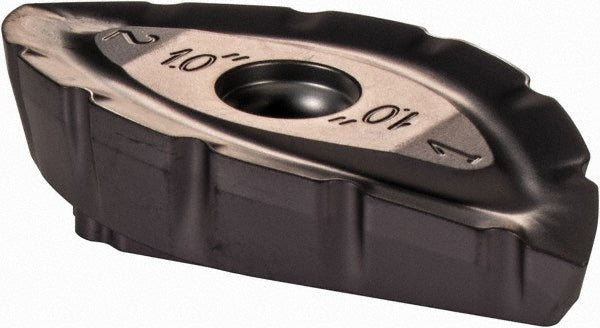

BCR D2.0-CS Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5605221

Iscar

BCR D2.0-CS Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5605221

MFR# 5605221ISO/ANSI# BCR D2.0-CSCat# BCR D2.0-CS IC908Series DROPMILL

$124.54List $159.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeBall Nose
GradeIC908
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5605221 is a BCR D2.0-CS solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeBCR D2.0-CS IC908
Chip breakerCS
Coating finishTiAlN
Coating processPVD
Corner radius in1
Cutter series compatibilityBCM
Cutting edge effective length1.7600
Cutting edge styleSegmented
Included angle degree90
Inscribed circle0.9860
Inscribed circle range0.7000 to 1.0000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size2.00
Insert size code2.00
Insert styleBCR
Iso codeBCR D2.0-CS
Length1.7600
Length range1.0000+
Manufacturers catalog numberBCR D2.0-CS IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut1.7600
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.3500
Thickness range0.3500 to 0.5000
Width0.9860
