Iscar

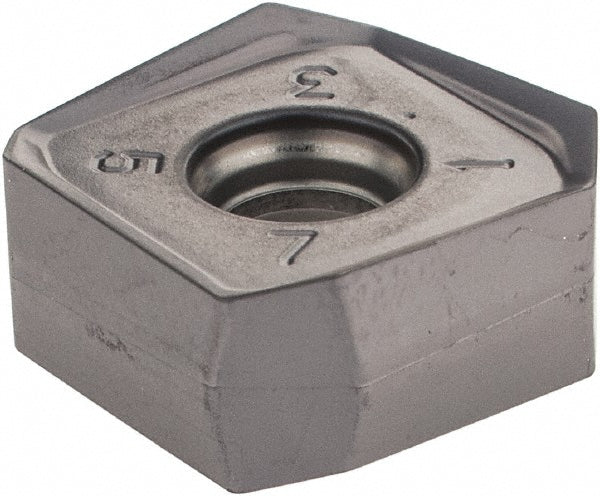

S845 SXMU 1606ADTR-MM Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5605228
MFR# 5605228ISO/ANSI# S845 SXMU 1606ADTR-MMCat# S845 SXMU 1606ADTR-MM IC928Series HELIDO
$32.25List $41.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeIC928
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5605228 is a S845 SXMU 1606ADTR-MM solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeS845 SXMU 1606ADTR-MM IC928
Chip breakerMM
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityS845 F45SX
Cutting edge effective length0.6122
Cutting edge styleHelical
Included angle degree90
Inscribed circle0.6437
Inscribed circle range0.6000 to 0.7000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size16
Insert size code1606
Insert styleSXMU
Iso codeS845 SXMU 1606ADTR-MM
Length0.6437
Length range0.6000 to 0.6500
Manufacturers catalog numberS845 SXMU 1606ADTR-MM IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC1; C2; C5; C6
Maximum depth of cut0.2810
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2930
Thickness range0.2500 to 0.3500
Width0.6437
