Iscar

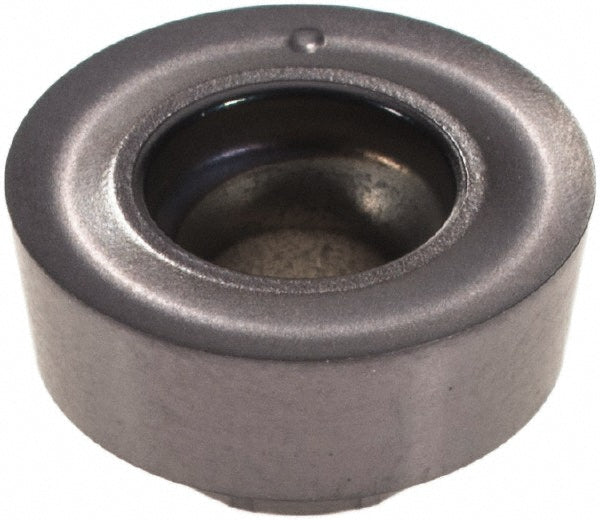

RCCT 1206MO Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5605281
MFR# 5605281ISO/ANSI# RCCT 1206MOCat# RCCT 1206MO IC908Series MILLSHRED
$19.99List $25.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5605281 is a RCCT 1206MO solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeRCCT 1206MO IC908
Chip breakerMO
Coating finishTiAlN
Coating processPVD
Corner radius0.2362
Cutter series compatibilityFRW; ERW
Cutting edge effective length0.4724
Cutting edge styleT-Land
Included angle degree360
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size12
Insert size code1206
Insert styleRCCT
Iso codeRCCT 1206MO
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberRCCT 1206MO IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.2362
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Relief angle7
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1570
Thickness range0.1500 to 0.1750
Width0.4724
