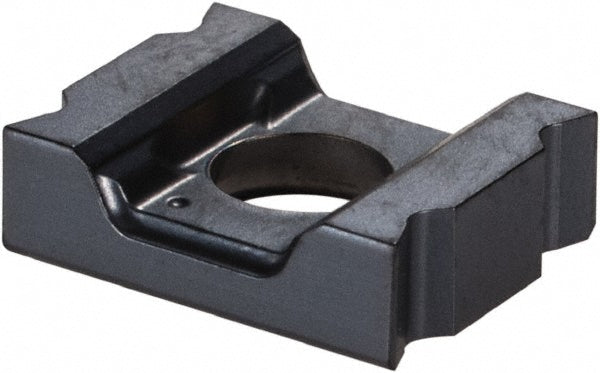

LNET 082604-TN-N Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5605307

Iscar

LNET 082604-TN-N Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5605307

MFR# 5605307ISO/ANSI# LNET 082604-TN-NCat# LNET 082604-TN-N IC910Series TANGSLOT

$23.82List $30.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeIC910
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5605307 is a LNET 082604-TN-N solid carbide indexable insert, grade IC910, AlTiN coated. Suited for steel, cast iron.

Specifications

Ansi codeLNET 082604-TN-N IC910
Chip breakerTN
Coating finishAlTiN
Coating processPVD
Corner radius in1/64
Cutter series compatibilityETS-LN08; FDN-LN08
Cutting edge effective length0.3310
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.3310
Inscribed circle range0.3000 to 0.3500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size08
Insert size code082604
Insert styleLNET
Iso codeLNET 082604-TN-N
Length0.3310
Length range0.3200 to 0.4000
Manufacturers catalog numberLNET 082604-TN-N IC910
Manufacturer gradeIC910
Material applicationSteel; Cast Iron
Maximum depth of cut0.3310
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle20
Relief angle0
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2700
Thickness range0.2500 to 0.3500
Width0.3310
