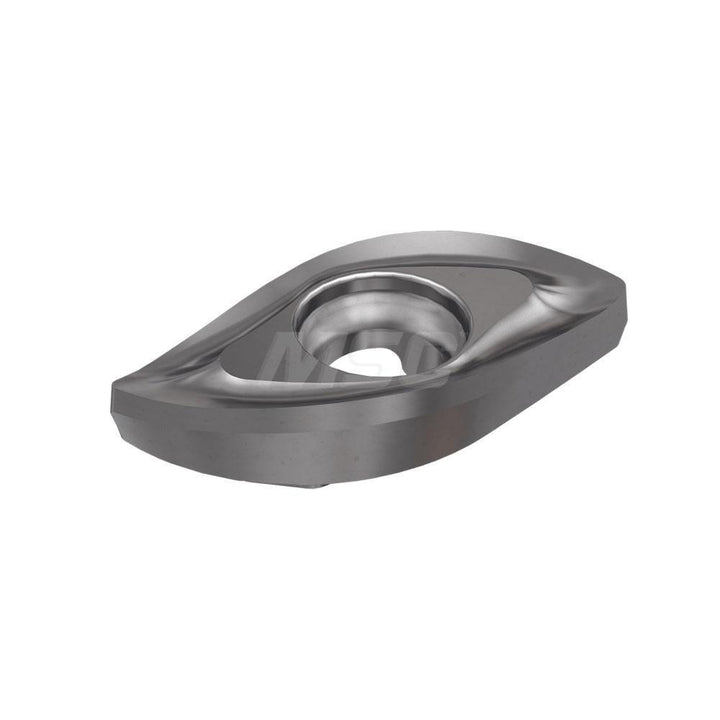

BCR D.62-QT Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5605367

Iscar

BCR D.62-QT Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5605367

MFR# 5605367ISO/ANSI# BCR D.62-QTCat# BCR D.62-QT IC908Series DROPMILL

$43.49List $55.70 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeBall Nose
GradeIC908
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5605367 is a BCR D.62-QT solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeBCR D.62-QT IC908
Chip breakerQT
Coating finishTiAlN
Coating processPVD
Corner radius0.3100
Cutter series compatibilityBCM
Cutting edge effective length0.5400
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.3000
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size0.62
Insert size code0.62
Insert styleBCR
Iso codeBCR D.62-QT
Length0.5400
Length range0.5000 to 0.6000
Manufacturers catalog numberBCR D.62-QT IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.5400
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1300
Thickness range0.1250 to 0.1500
Width0.3000
