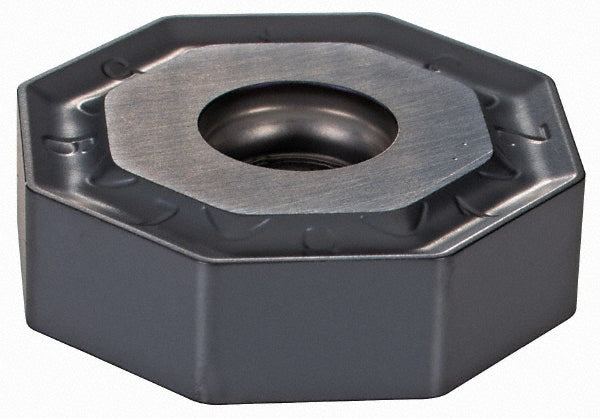

ONMU 080612-HL Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5605377

Iscar

ONMU 080612-HL Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5605377

MFR# 5605377ISO/ANSI# ONMU 080612-HLCat# ONMU 080612-HL IC910Series 16MILL

$28.42List $36.40 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeOctagon
GradeIC910
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5605377 is a ONMU 080612-HL solid carbide indexable insert, grade IC910, AlTiN coated. Suited for steel, cast iron.

Specifications

Ansi codeONMU 080612-HL IC910
Chip breakerHL
Coating finishAlTiN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityF45NM; F45WG
Cutting edge effective length0.2170
Cutting edge styleT-Land
Included angle degree135
Inscribed circle0.7953
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size08
Insert size code080612
Insert styleONMU
Iso codeONMU 080612-HL
Length0.7953
Length range0.7000 to 0.9000
Manufacturers catalog numberONMU 080612-HL IC910
Manufacturer gradeIC910
Material applicationSteel; Cast Iron
Material gradeC2; C3; C6
Maximum depth of cut0.2170
Multi use toolYes
Number of cutting edges16
Primary workpiece materialSteel; Cast Iron
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2360
Thickness range0.2350 to 0.2500
Width0.7953
