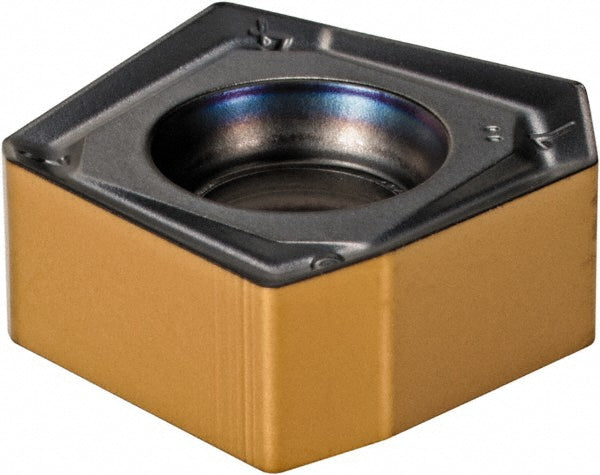

S845 SNMU 1305ANTR Solid Carbide Insert, Grade IC810, AlTiCrN - Iscar 5605385

Iscar

S845 SNMU 1305ANTR Solid Carbide Insert, Grade IC810, AlTiCrN - Iscar 5605385

MFR# 5605385ISO/ANSI# S845 SNMU 1305ANTRCat# S845 SNMU 1305ANTR IC810Series HELIDO

$27.26List $34.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIC810
MaterialSolid Carbide
CoatingAlTiCrN

Description

The Iscar 5605385 is a S845 SNMU 1305ANTR solid carbide indexable insert, grade IC810, AlTiCrN coated. Suited for steel, cast iron.

Specifications

Ansi codeS845 SNMU 1305ANTR IC810
Chip breakerANTR
Coating finishAlTiCrN
Coating processPVD
Corner radius in1/32
Cutter series compatibilitySOE45; SOF45
Cutting edge effective length0.2758
Cutting edge styleHelical
Included angle degree90
Inscribed circle0.5118
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size13
Insert size code1305
Insert styleSNMU
Iso codeS845 SNMU 1305ANTR
Length0.5118
Length range0.5000 to 0.6000
Manufacturers catalog numberS845 SNMU 1305ANTR IC810
Manufacturer gradeIC810
Material applicationSteel; Cast Iron
Maximum depth of cut0.2360
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2440
Thickness range0.2350 to 0.2500
Width0.5118
