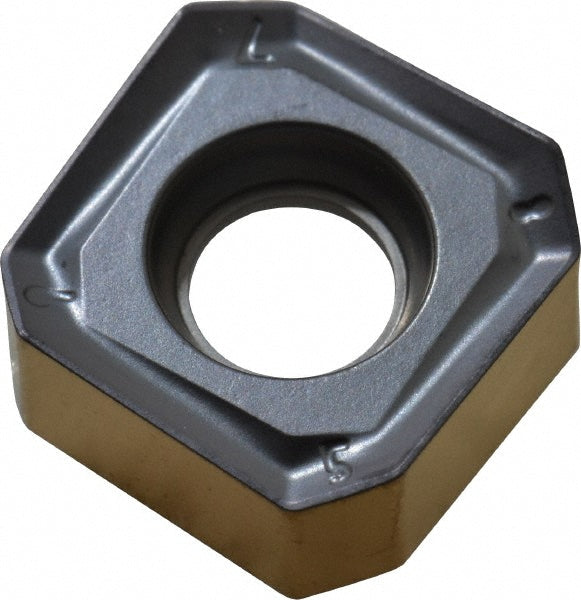

S845 SNMU 1305ANR-MM Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5605386

Iscar

S845 SNMU 1305ANR-MM Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5605386

MFR# 5605386ISO/ANSI# S845 SNMU 1305ANR-MMCat# S845 SNMU 1305ANR-MM IC830Series HELIDO

$27.26List $34.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIC830
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5605386 is a S845 SNMU 1305ANR-MM solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeS845 SNMU 1305ANR-MM IC830
Chip breakerMM
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutter series compatibilitySOE45; SOF45
Cutting edge effective length0.2758
Cutting edge styleHelical
Included angle degree90
Inscribed circle0.5118
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size13
Insert size code1305
Insert styleSNMU
Iso codeS845 SNMU 1305ANR-MM
Length0.5118
Length range0.5000 to 0.6000
Manufacturers catalog numberS845 SNMU 1305ANR-MM IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.2360
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2440
Thickness range0.2350 to 0.2500
Width0.5118
