Iscar

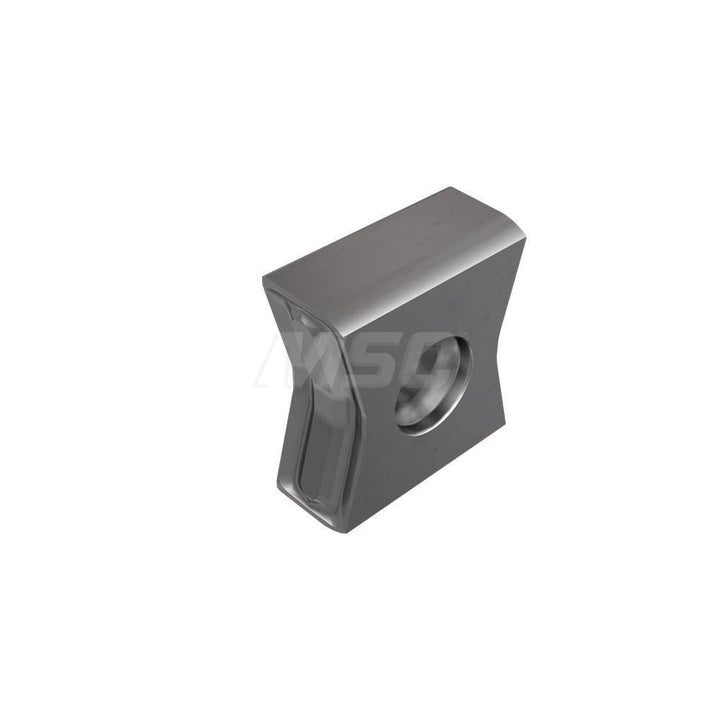

LNAT 1506PN-W Solid Carbide Insert, Grade IC4100, TiCN - Iscar 5605389
MFR# 5605389ISO/ANSI# LNAT 1506PN-WCat# LNAT 1506PN-W IC4100Series TANGMILL
$32.42List $40.80
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeButterfly
GradeIC4100
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5605389 is a LNAT 1506PN-W solid carbide indexable insert, grade IC4100, TiCN coated. Suited for cast iron, hard material.
Specifications
Ansi codeLNAT 1506PN-W IC4100
Chip breakerW
Coating finishTiCN
Coating processMTCVD
Corner radius0.0000
Cutter series compatibilitySSB-LN15; F90LN
Cutting edge effective length0.5976
Cutting edge styleWiper
Included angle degree90
Inscribed circle0.2350
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size15
Insert size code1506
Insert styleLNAT
Iso codeLNAT 1506PN-W
Length0.5976
Length range0.5000 to 0.6000
Manufacturers catalog numberLNAT 1506PN-W IC4100
Manufacturer gradeIC4100
Material applicationCast Iron; Hard Material
Material gradeC2; C3; C4; C6; C7
Maximum depth of cut0.5976
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron; Hard Material
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.5450
Thickness range0.5000+
Width0.2350
