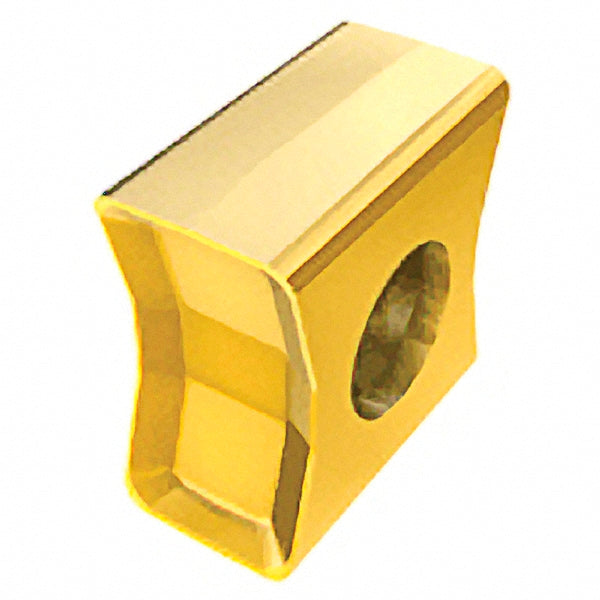

LNKX 1106PN-N MM Solid Carbide Insert, Grade DT7150, Al2O3 - Iscar 5605401

Iscar

LNKX 1106PN-N MM Solid Carbide Insert, Grade DT7150, Al2O3 - Iscar 5605401

MFR# 5605401ISO/ANSI# LNKX 1106PN-N MMCat# LNKX 1106PN-N MM DT7150Series TANGMILL

$27.26List $34.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeDT7150
MaterialSolid Carbide
CoatingAl2O3

Description

The Iscar 5605401 is a LNKX 1106PN-N MM solid carbide indexable insert, grade DT7150, Al2O3 coated. Suited for cast iron, hard material.

Specifications

Ansi codeLNKX 1106PN-N MM DT7150
Chip breakerMM
Coating finishAl2O3
Coating processMTCVD; PVD
Corner radius in1/32
Cutter series compatibilityFDN; SDN; F90LN; F86
Cutting edge effective length0.4394
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.2360
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size11
Insert size code1106
Insert styleLNKX
Iso codeLNKX 1106PN-N MM
Length0.4394
Length range0.4000 to 0.4500
Manufacturers catalog numberLNKX 1106PN-N MM DT7150
Manufacturer gradeDT7150
Material applicationCast Iron; Hard Material
Maximum depth of cut0.1970
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron; Hard Material
RakeNegative
Rake angle30
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.4330
Thickness range0.3500 to 0.5000
Width0.2360
