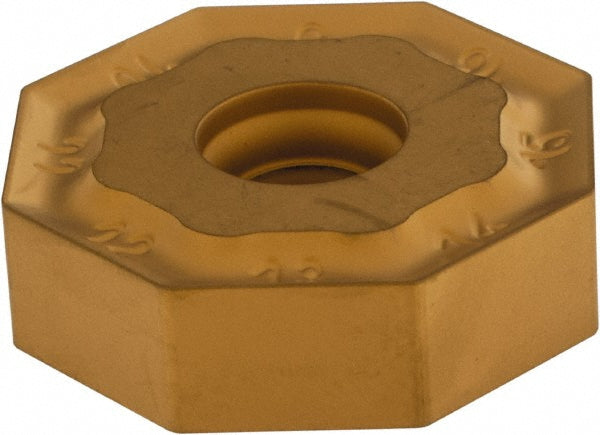

ONMU 080608-TN Solid Carbide Insert, Grade IC4100, TiCN - Iscar 5605432
MFR# 5605432ISO/ANSI# ONMU 080608-TNCat# ONMU 080608-TN IC4100Series 16MILL
$27.10List $34.70
Save 21%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeOctagon
GradeIC4100
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5605432 is a ONMU 080608-TN solid carbide indexable insert, grade IC4100, TiCN coated. Suited for cast iron, hard material.
Specifications
Ansi codeONMU 080608-TN IC4100
Chip breakerTN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutter series compatibilityF45NM; F45WG
Cutting edge effective length0.2170
Cutting edge styleT-Land
Included angle degree135
Inscribed circle0.7953
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size08
Insert size code080608
Insert styleONMU
Iso codeONMU 080608-TN
Length0.7953
Length range0.7000 to 0.9000
Manufacturers catalog numberONMU 080608-TN IC4100
Manufacturer gradeIC4100
Material applicationCast Iron; Hard Material
Maximum depth of cut0.2170
Multi use toolYes
Number of cutting edges16
Primary workpiece materialCast Iron; Hard Material
RakeNegative
Rake angle26
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2360
Thickness range0.2350 to 0.2500
Width0.7953
