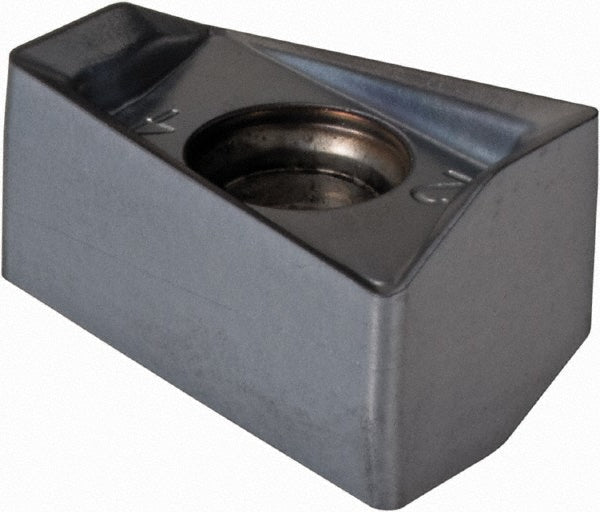

H490 ANKX 170608PNTR Solid Carbide Insert, Grade IC328, TiCN - Iscar 5605448
MFR# 5605448ISO/ANSI# H490 ANKX 170608PNTRCat# H490 ANKX 170608PNTR IC328Series HELIDO
$28.21List $35.50
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC328
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5605448 is a H490 ANKX 170608PNTR solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeH490 ANKX 170608PNTR IC328
Chip breakerPNTR
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityH490 ANK17
Cutting edge effective length0.6300
Cutting edge styleHelical
Included angle degree85
Inscribed circle0.4410
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size17
Insert size code170608
Insert styleANKX
Iso codeH490 ANKX 170608PNTR
Length0.6575
Length range0.6500 to 0.7000
Manufacturers catalog numberH490 ANKX 170608PNTR IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.6300
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.4090
Thickness range0.3500 to 0.5000
Width0.4410
