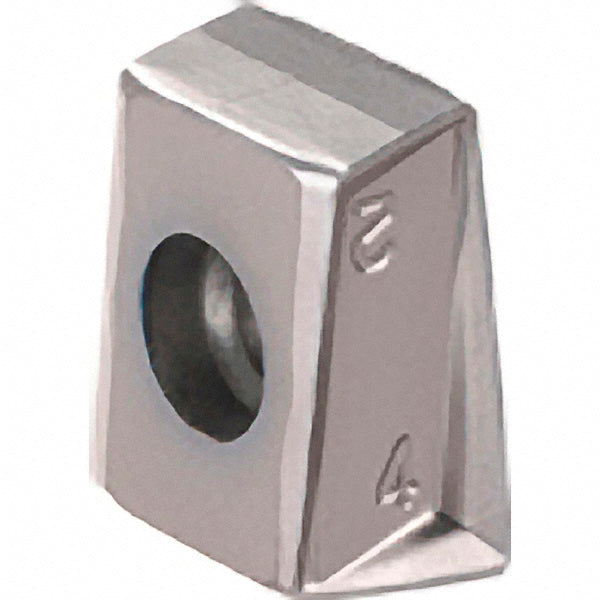

T490 LNMX 0804PNR Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5605471

Iscar

T490 LNMX 0804PNR Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5605471

MFR# 5605471ISO/ANSI# T490 LNMX 0804PNRCat# T490 LNMX 0804PN-R IC910Series HELITANG

$23.27List $29.80 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeIC910
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5605471 is a T490 LNMX 0804PNR solid carbide indexable insert, grade IC910, AlTiN coated. Suited for steel, cast iron.

Specifications

Ansi codeT490 LNMX 0804PN-R IC910
Chip breakerR
Coating finishAlTiN
Coating processPVD
Corner radius0.0000
Cutter series compatibilityT490 LNK08
Cutting edge effective length0.3150
Cutting edge styleHelical
Included angle degree90
Inscribed circle0.1670
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size08
Insert size code0804
Insert styleLNMX
Iso codeT490 LNMX 0804PNR
Length0.3150
Length range0.0000 to 0.3200
Manufacturers catalog numberT490 LNMX 0804PN-R IC910
Manufacturer gradeIC910
Material applicationSteel; Cast Iron
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2925
Thickness range0.2500 to 0.3500
Width0.1670
