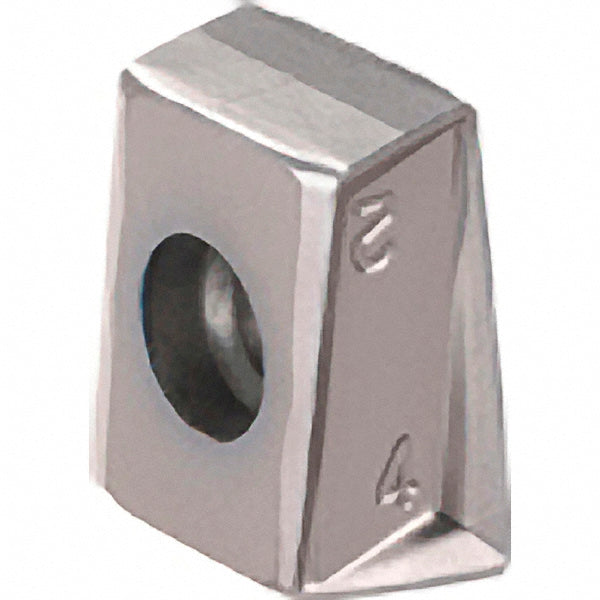

T490 LNMX 0804PN-R Solid Carbide Insert, Grade DT7150, Al2O3 - Iscar 5605473

Iscar

T490 LNMX 0804PN-R Solid Carbide Insert, Grade DT7150, Al2O3 - Iscar 5605473

MFR# 5605473ISO/ANSI# T490 LNMX 0804PN-RCat# T490 LNMX 0804PN-R DT7150Series HELITANG

$23.27List $29.80 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeDT7150
MaterialSolid Carbide
CoatingAl2O3

Description

The Iscar 5605473 is a T490 LNMX 0804PN-R solid carbide indexable insert, grade DT7150, Al2O3 coated. Suited for cast iron, hard material.

Specifications

Ansi codeT490 LNMX 0804PN-R DT7150
Chip breakerR
Coating finishAl2O3
Coating processMTCVD; PVD
Corner radius0.0000
Cutter series compatibilityT490 LNK08
Cutting edge effective length0.3150
Cutting edge styleHelical
Included angle degree90
Inscribed circle0.1670
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size08
Insert size code0804
Insert styleLNMX
Iso codeT490 LNMX 0804PN-R
Length0.3150
Length range0.0000 to 0.3200
Manufacturers catalog numberT490 LNMX 0804PN-R DT7150
Manufacturer gradeDT7150
Material applicationCast Iron; Hard Material
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron; Hard Material
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2925
Thickness range0.2500 to 0.3500
Width0.1670
