Iscar

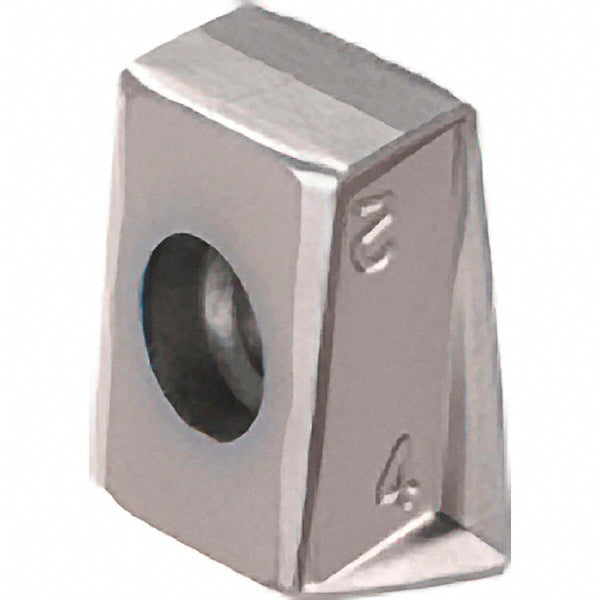

T490 LNMX 0804PNR Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5605474
MFR# 5605474ISO/ANSI# T490 LNMX 0804PNRCat# T490 LNMX 0804PN-R IC908Series HELITANG
$23.27List $29.80
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeButterfly
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5605474 is a T490 LNMX 0804PNR solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeT490 LNMX 0804PN-R IC908
Chip breakerR
Coating finishTiAlN
Coating processPVD
Corner radius0.0000
Cutter series compatibilityT490 LNK08
Cutting edge effective length0.3150
Cutting edge styleHelical
Included angle degree90
Inscribed circle0.1670
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size08
Insert size code0804
Insert styleLNMX
Iso codeT490 LNMX 0804PNR
Length0.3150
Length range0.0000 to 0.3200
Manufacturers catalog numberT490 LNMX 0804PN-R IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Width0.1670
