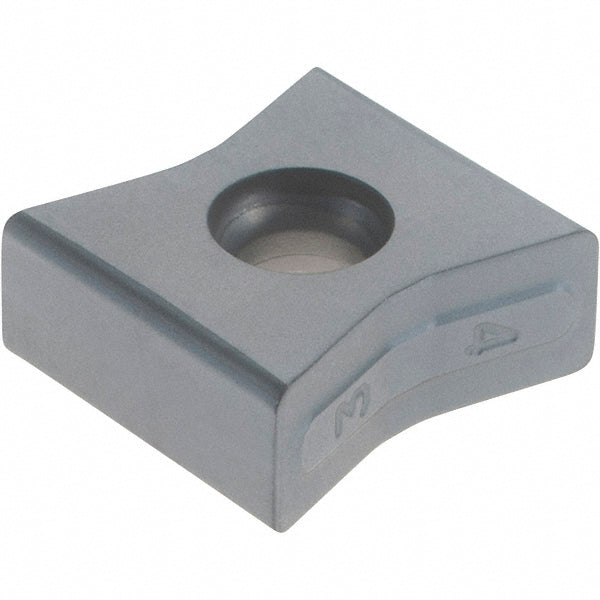

LNMW 1506 PNTN Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5605497

Iscar

LNMW 1506 PNTN Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5605497

MFR# 5605497ISO/ANSI# LNMW 1506 PNTNCat# LNMW 1506 PNTN IC910Series TANGMILL

$24.83List $31.80 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeIC910
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5605497 is a LNMW 1506 PNTN solid carbide indexable insert, grade IC910, AlTiN coated. Suited for steel, cast iron.

Specifications

Ansi codeLNMW 1506 PNTN IC910
Chip breakerFlat Top
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityF45LN
Cutting edge effective length0.5906
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.2360
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size15
Insert size code1506
Insert styleLNMW
Iso codeLNMW 1506 PNTN
Length0.5906
Length range0.5000 to 0.6000
Manufacturers catalog numberLNMW 1506 PNTN IC910
Manufacturer gradeIC910
Material applicationSteel; Cast Iron
Maximum depth of cut0.3940
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.5500
Thickness range0.5000+
Width0.2360
