Carbide Insert, Grade IC908, TiAlN - Iscar 5605512

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5605512

MFR# 5605512Series MT-UN-MM

$217.62List $278.70 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
GradeIC908
CoatingTiAlN

Description

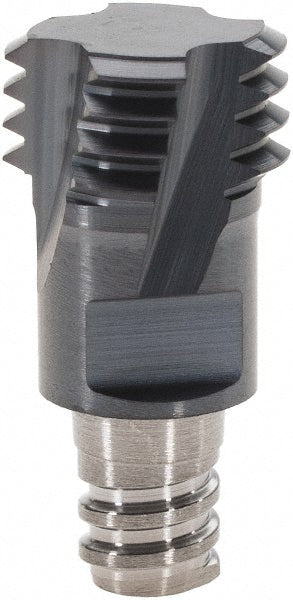

The Iscar 5605512 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.3940
Cutting width0.394
Extension from holder in0.5256
Functional length0.5020
Included angle degree90
Insert handRight Hand
Insert size10D6 20
Lead angle90
Length of cut0.2010
Manufacturers catalog number5605512
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.2010
Milling tip full descriptionMT 10D6 20UN-MMT05
Milling tip styleMT-UN-MM
Milling tip typeThread
Number of flutes4
Overall length0.502
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
