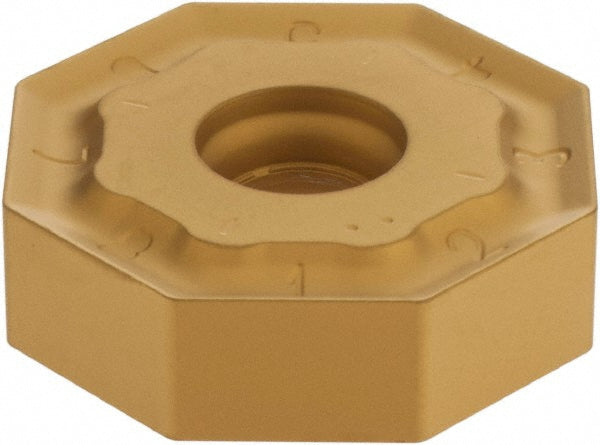

ONHU 080608-TN Solid Carbide Insert, Grade IC4100, TiCN - Iscar 5605526

Iscar

ONHU 080608-TN Solid Carbide Insert, Grade IC4100, TiCN - Iscar 5605526

MFR# 5605526ISO/ANSI# ONHU 080608-TNCat# ONHU 080608-TN IC4100Series 16MILL

$34.51List $44.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeOctagon
GradeIC4100
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5605526 is a ONHU 080608-TN solid carbide indexable insert, grade IC4100, TiCN coated. Suited for cast iron, hard material.

Specifications

Ansi codeONHU 080608-TN IC4100
Chip breakerTN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutter series compatibilityF45NM; F45WG
Cutting edge effective length0.2170
Cutting edge styleT-Land
Included angle degree135
Inscribed circle0.7953
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size08
Insert size code080608
Insert styleONHU
Iso codeONHU 080608-TN
Length0.7953
Length range0.7000 to 0.9000
Manufacturers catalog numberONHU 080608-TN IC4100
Manufacturer gradeIC4100
Material applicationCast Iron; Hard Material
Material gradeC2; C3; C4; C6; C7
Maximum depth of cut0.2170
Multi use toolYes
Number of cutting edges16
Primary workpiece materialCast Iron; Hard Material
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2360
Thickness range0.2350 to 0.2500
Width0.7953
