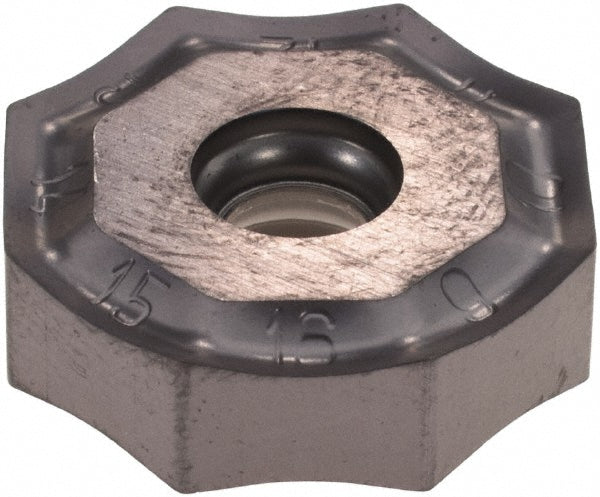

ONMU 080608 AN-N-HP Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5605533

Iscar

ONMU 080608 AN-N-HP Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5605533

MFR# 5605533ISO/ANSI# ONMU 080608 AN-N-HPCat# ONMU 080608 AN-N-HP IC928Series 16MILL

$28.42List $36.40 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeOctagon
GradeIC928
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5605533 is a ONMU 080608 AN-N-HP solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeONMU 080608 AN-N-HP IC928
Chip breakerHP
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityF45NM; F45WG
Cutting edge effective length0.2170
Cutting edge styleT-Land
Included angle degree135
Inscribed circle0.7953
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size08
Insert size code080608
Insert styleONMU
Iso codeONMU 080608 AN-N-HP
Length0.7953
Length range0.7000 to 0.9000
Manufacturers catalog numberONMU 080608 AN-N-HP IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.2170
Multi use toolYes
Number of cutting edges16
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2360
Thickness range0.2350 to 0.2500
Width0.7953
